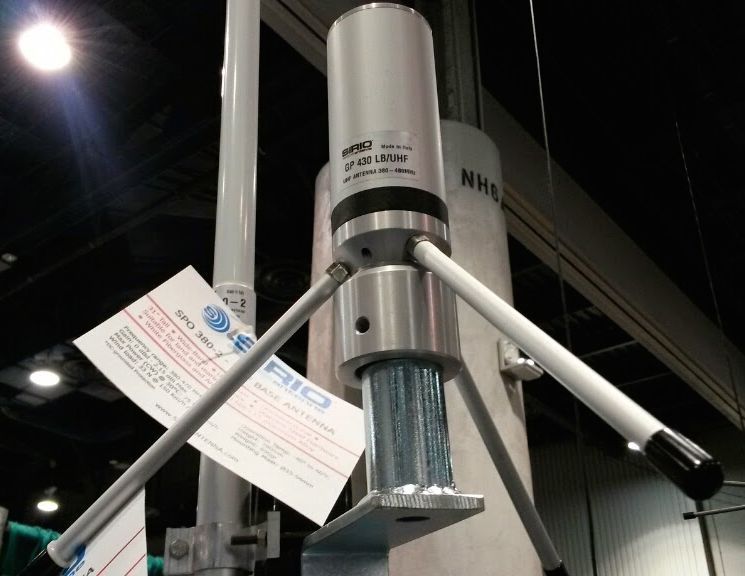

1/4 λ Ground Plane wide-band antenna for base station service. It has been developped according to the most modern technologies to assure a perfect protection against the worst atmospheric climates and to get the best performance. It is entirely made of aluminium to assure strength and robustness and its radial whip is earthed.
Base station antenna, Wide-bandUnity-gain, OmnidirectionalProtection from static discharges DC-GroundPerfect protection against the worst weather conditionsMade of anodized aluminium alloyStainless steel hardwareSide mast mounting allowed by optional bracket FT-2 code 2510004.00
Electrical DataType: 1/4λ ground plane large bandFrequency range @ SWR ≤1.7: 380 - 480 MHzImpedance: 50ΩRadiation (H-plane): 360° omnidirectionalRadiation (E-plane): beamwidth @ -3 dB = 80°Radiation angle: 0°Polarization: linear verticalGain: 0 dBd - 2.15 dBiMax. power (CW) @ 30°C: 300 WattsGrounding protection: All metal parts are DC-grounded, the inner conductor shows a DC short - Connector:GP 430 LB-U: UHF (SO 239)
Mechanical DataMaterials: Anodized Aluminium, Stainless Steel, NylonWind load / resistance: 18 N @ 150 Km/h / 180 Km/hWind surface: 0.02 m²Height (approx.): 295 mmWeight (approx.): 200 grMounting mast: Ø 36-40 mm
